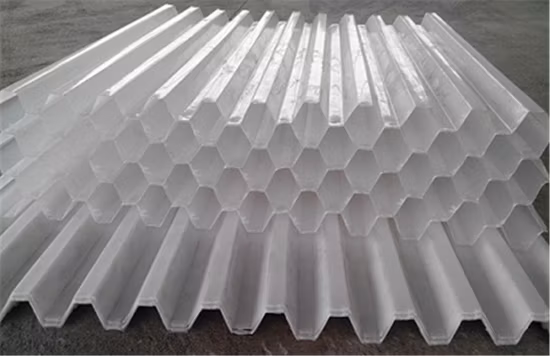

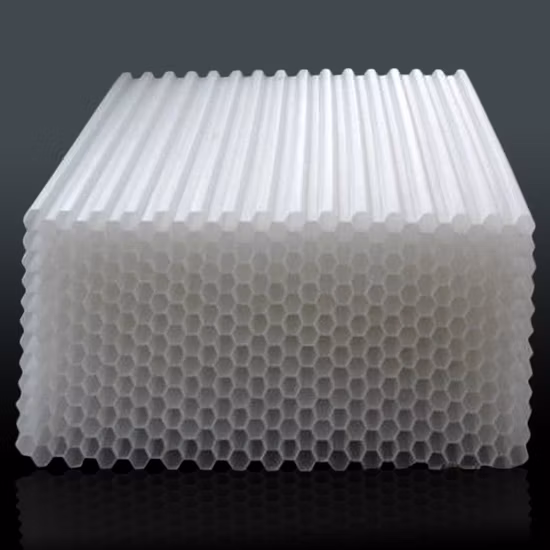

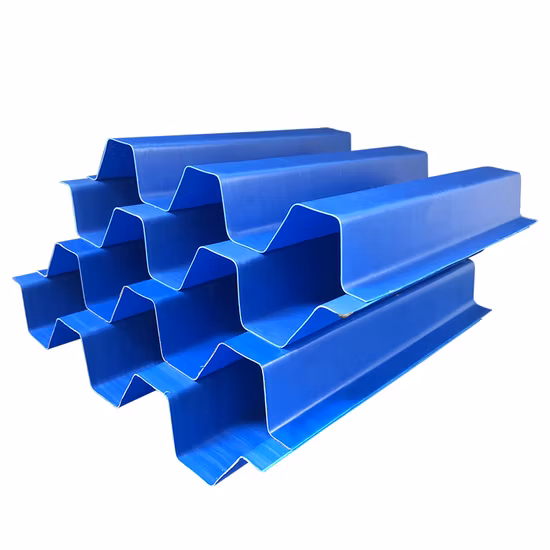

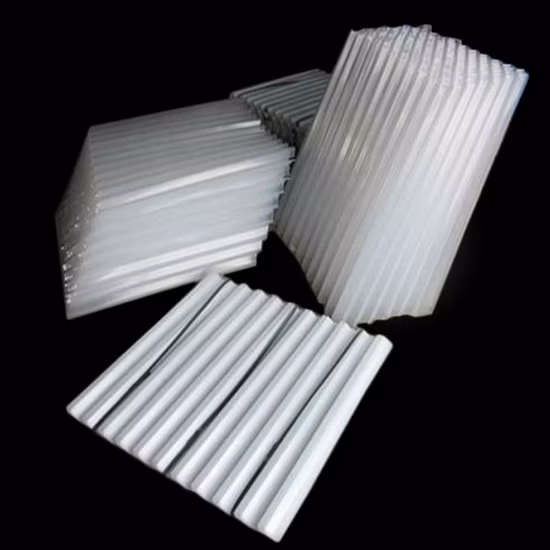

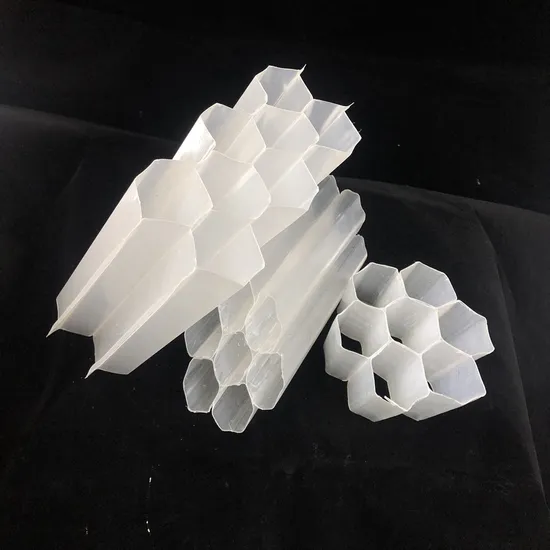

50mm 80mm Plastic Tube Settler for Water Treatment PP Tube Settler Media

Basic Info.

Model NO.	LT-TS06
Size	1*1m
Transport Package	Pallet
Specification	tube settler
Trademark	LongTime
Origin	Hebei, China
HS Code	3926909090
Production Capacity	20000pieces/Month

Product Description

50mm 80mm Plastic Tube Settler for water treatment PP Tube Settler media

PP PVC lamella clarifier tube settler media is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has wide application, high handling efficiency, small area, etc. It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water.The modular and cubical self-supporting settler design of Honeycombed Inclined Tube Settlers aids handling during installation and any subsequent maintenance.

PP PVC lamella clarifier tube settler media for trickling filter for sewage water treatment design avoids thin wall membranes and utilizes forming techniques to minimize component stress and subsequent environmental stress cracking fatigue.

PP PVC lamella clarifier tube settler media for sewage water treatment offers an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance. They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters

Aperture (mm)	Thickness (mm)	Quantity (pcs/m2)	Weight (kg/m2)	Surface Area (m2/m3)
25	0.40	62	30	139
35	0.45	42	25	109
50	0.50	30	19	87
80	0.80	19	20	50

Main Features

♦ Large wetted perimeter, hydraulic radius is small.

♦ The laminar good condition, particles falling from flocculent flow interference.♦ When the tube for 1 m long, effective load by 5 tons/square meter design.And V control in 2.5- 3.0 mm/SEC effluent water,within the scope of the best.♦ In the water inlet place inclined pipe length, the honeycomb 2.0-3.0 meters, may in the 50-100 kg/m3 clay sand content of high turbidity safe operation of processing.♦ The plastic inclined packing, which the processing ability is to destabilize the flat streaming traps three to five times, accelerate the clear pool and pulse clarify pool two to three times.♦ The material is with UV radiation protection.

Application of Tube Settler.1.Tube settler is used in sediment pool, wastewater treated pool, Accelerated Sediment pool and clarifier.2.Tube settler can do wastewater treatment of Metal processing3.Water from earth's surface purification4.Tube settler is a tool doing treatment of washing water5.Tube settler can also wastewater treatment of paper making


Tube settler usually packed by pallet
